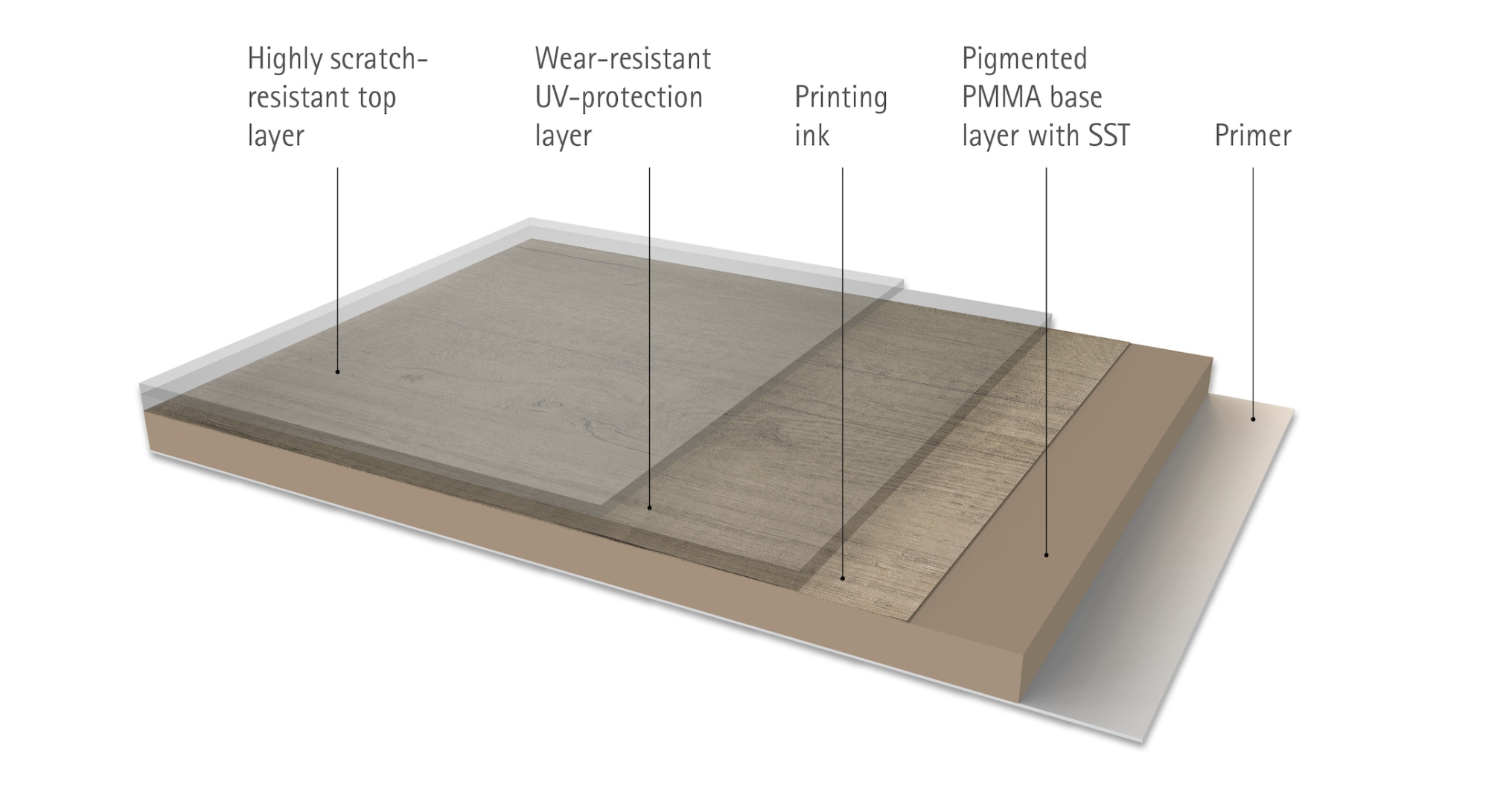

TrueGrain Deck™ Construction
Manufactured by Patwin Plastics. Laminated with RENOLIT PMMA film.

Clear, high-hardness exterior surface film engineered to resist abrasion from foot traffic, patio furniture, pet claws, sand, and grit. Defines the wear face of the board and protects the printed decor against everyday mechanical contact in residential service.

Dedicated UV stabilizer film formulated to absorb solar radiation before it can reach the print or the polymer substrate. Preserves color fidelity on the decorative wood-grain and shields the underlying chemistry from photo-oxidative degradation.

High-resolution rotogravure decor print laid down between the protective films above and the pigmented PMMA base below. Reproduces variegated grain, pore structure, and tonal depth of premium hardwoods with edge-to-edge registration on every board.

Acrylic (PMMA) base layer carrying RENOLIT's Solar Shield Technology (SST). SST reflects the near-infrared portion of the solar spectrum so the board runs measurably cooler under direct sun, while the PMMA chemistry provides the dimensional stability and weatherability specified for exterior cladding.

Engineered tie-coat applied to the underside of the film stack. Forms the chemical bond that locks the laminate to the capped cellular PVC substrate, producing a permanent lamination rather than a surface-applied coating.
